RF137減速機重量：RF137減速機重量222公斤，RF137減速機帶電機重量分別如下：

RF137減速機帶5.5KW電機重量282公斤,RF137減速機帶7.5KW電機重量295公斤,RF137減速機帶11KW電機重量337公斤,RF137減速機帶15KW電機重量357公斤,RF137減速機帶18.5KW電機重量394公斤,RF137減速機帶22KW電機重量407公斤,RF137減速機帶30KW電機重量475公斤,RF137減速機帶37KW電機重量522公斤,RF137減速機帶45KW電機重量557公斤,RF137減速機帶55KW電機重量642公斤。RF系列減速機

RF137減速機加油量：可加合成油

RF137減速機M2安裝加28升，RF137減速機M1安裝加10、25升，RF137減速機M3安裝加29.5升，RF137減速機M4安裝加31.5升，RF137減速機M5安裝加25升，RF137減速機M6安裝加25升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。齒輪減速機

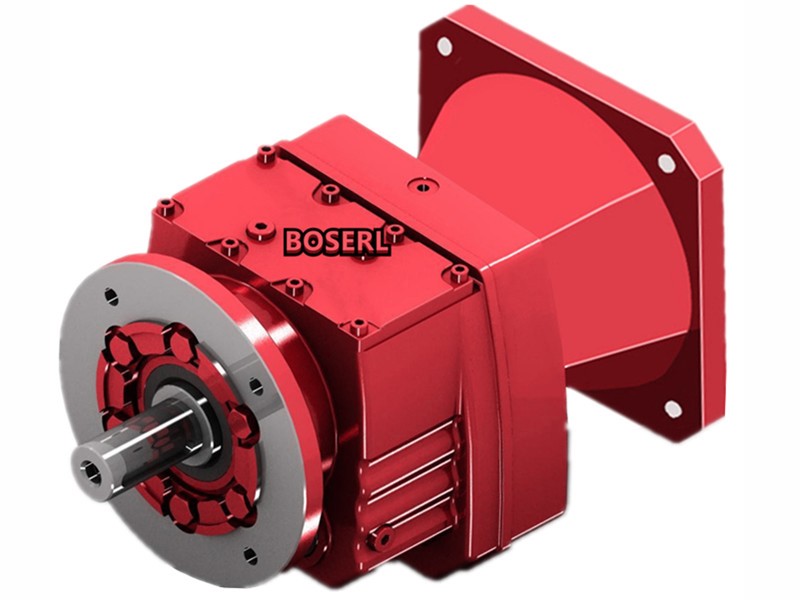

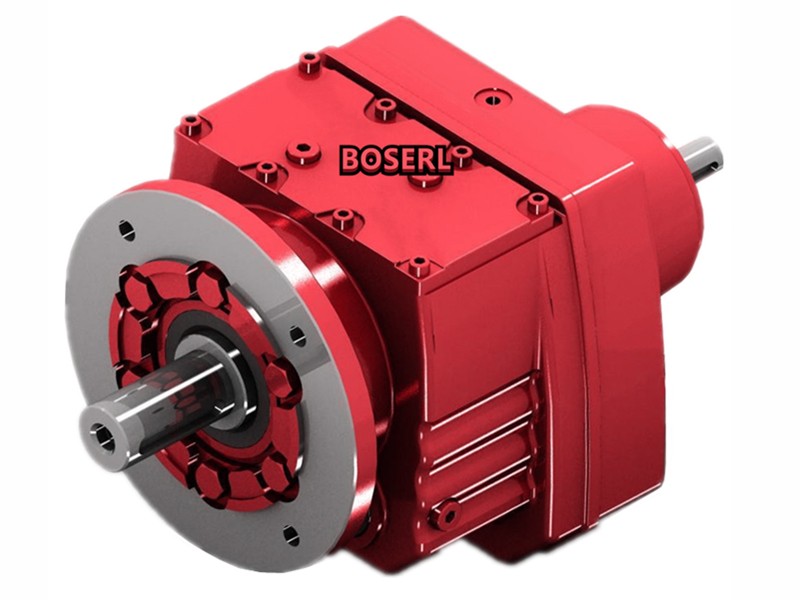

RF137減速機實物圖：圖一為RF137法蘭立式安裝斜齒輪減速機，圖二為RF137底腳安裝斜齒輪減速機，圖三為RX系列減速機不同心臥式底腳安裝，圖四為RXF系列減速機不同心立式法蘭安裝。

RF137減速機型號表示方法：

RF137減速機型號結構RF137-B45KW-4P-減速比-安裝方式-接線盒位置。

RF137減速機性能參數表結構說明：1/min代表輸出轉數，KW代表電機功率，Nm代表輸出扭矩，i代表減速比，N代表徑向負荷，K代表服務系數，Frame size代表基座規格，Input Configuration代表輸入帶置。

RF137減速機電機接線盒方位說明：本頁附件選型樣本視圖為M1安裝，方向為:從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供。可提供S和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。同軸減速機

RF137減速機參數：

RF137減速機電機可配剎車、變頻、防爆、伺服、交流、直流、三相、單相電機RF137配5.5KW,RF137配7.5KW,RF137配11KW,RF137配15KW,RF137配18.5KW,RF137配22KW,RF137配30KW,RF137配37KW,RF137配45KW,RF137配55KW。

RF137減速機輸出轉速6.3轉,7.4轉,8轉,9轉,9.9轉,11轉,12轉,14轉,16轉,17轉,19轉,21轉,24轉,28轉,32轉,37轉,43轉,47轉,50轉,58轉,64轉,74轉,83轉,96轉,109轉,130轉,161轉,184轉,219轉,272轉。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

RF137減速機負載扭矩4600N.m,5110N.m,7680N.m,7780N.m,7840N.m,8000N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

RF137減速機減速比5.15比,6.38比,7.59比,8.71比,10.79比,12.83比,14.51比,16.8比,19.04比,22比,24.12比,27.83比,29.57比,32.91比,37.65比,44.39比,50.86比,59.17比,65.2比,73.49比,80.91比,88.7比,103.72比,113.72比,128.18比,141.12比,156.31比,174.4比,188.45比,222.6比。

RF137減速機外形尺寸：輸出軸Φ90+鍵5（可定做），高495*寬458*長589（帶輸出軸）

RF137減速機型號：

RF137AQA80,RF137AQA100,RF137AQA115,RF137AQA140,RF137AQA160,RF137AQA190,RF137AQH80,RF137AQH100,RF137AQH115,RF137AQH140,RF137AQH160,RF137AQH190,JRTRF137-Y112M4,JRTRF137-Y11KW,JRTRF137-Y132M4,JRTRF137-Y15KW,JRTRF137-Y160M4,JRTRF137-Y18.5KW,JRTRF137-Y180M4,JRTRF137-Y200M4,JRTRF137-Y225M4,JRTRF137-Y22KW,JRTRF137-Y250M4,JRTRF137-Y30KW,JRTRF137-Y37KW,JRTRF137-Y45KW,JRTRF137-Y4KW,JRTRF137-Y5.5KW,JRTRF137-Y55KW,JRTRF137-Y7.5KW,JRTRF137-YEJ112M4,JRTRF137-YEJ132M4,JRTRF137-YEJ160M4,JRTRF137-YEJ180M4,JRTRF137-YEJ200M4,JRTRF137-YEJ225M4,JRTRF137-YEJ250M4,JRTRF137-YS112M4,JRTRF137-YS132M4,JRTRF137-YS160M4,JRTRF137-YS180M4,JRTRF137-YS200M4,JRTRF137-YS225M4,JRTRF137-YS250M4,JRTRF137-YVP112M4,JRTRF137-YVP132M4,JRTRF137-YVP160M4,JRTRF137-YVP180M4,JRTRF137-YVP200M4,JRTRF137-YVP225M4,JRTRF137-YVP250M4,JRTRF137-YVPEJ112M4,JRTRF137-YVPEJ132M4,JRTRF137-YVPEJ160M4,JRTRF137-YVPEJ180M4,JRTRF137-YVPEJ200M4,JRTRF137-YVPEJ225M4,JRTRF137-YVPEJ250M4,EWRF137-Y112M4,EWRF137-Y11KW,EWRF137-Y132M4,EWRF137-Y15KW,EWRF137-Y160M4,EWRF137-Y18.5KW,EWRF137-Y180M4,EWRF137-Y200M4,EWRF137-Y225M4,EWRF137-Y22KW,EWRF137-Y250M4,EWRF137-Y30KW,EWRF137-Y37KW,EWRF137-Y45KW,EWRF137-Y4KW,EWRF137-Y5.5KW,EWRF137-Y55KW,EWRF137-Y7.5KW,EWRF137-YEJ112M4,EWRF137-YEJ132M4,EWRF137-YEJ160M4,EWRF137-YEJ180M4,EWRF137-YEJ200M4,EWRF137-YEJ225M4,EWRF137-YEJ250M4,EWRF137-YS112M4,EWRF137-YS132M4,EWRF137-YS160M4,EWRF137-YS180M4,EWRF137-YS200M4,EWRF137-YS225M4,EWRF137-YS250M4,EWRF137-YVP112M4,EWRF137-YVP132M4,EWRF137-YVP160M4,EWRF137-YVP180M4,EWRF137-YVP200M4,EWRF137-YVP225M4,EWRF137-YVP250M4,EWRF137-YVPEJ112M4,EWRF137-YVPEJ132M4,EWRF137-YVPEJ160M4,EWRF137-YVPEJ180M4,EWRF137-YVPEJ200M4,EWRF137-YVPEJ225M4,EWRF137-YVPEJ250M4,SLRF137-Y112M4,SLRF137-Y11KW,SLRF137-Y132M4,SLRF137-Y15KW,SLRF137-Y160M4,SLRF137-Y18.5KW,SLRF137-Y180M4,SLRF137-Y200M4,SLRF137-Y225M4,SLRF137-Y22KW,SLRF137-Y250M4,SLRF137-Y30KW,SLRF137-Y37KW,SLRF137-Y45KW,SLRF137-Y4KW,SLRF137-Y5.5KW,SLRF137-Y55KW,SLRF137-Y7.5KW,SLRF137-YEJ112M4,SLRF137-YEJ132M4,SLRF137-YEJ160M4,SLRF137-YEJ180M4,SLRF137-YEJ200M4,SLRF137-YEJ225M4,SLRF137-YEJ250M4,SLRF137-YS112M4,SLRF137-YS132M4,SLRF137-YS160M4,SLRF137-YS180M4,SLRF137-YS200M4,SLRF137-YS225M4,SLRF137-YS250M4,SLRF137-YVP112M4,SLRF137-YVP132M4,SLRF137-YVP160M4,SLRF137-YVP180M4,SLRF137-YVP200M4,SLRF137-YVP225M4,SLRF137-YVP250M4,SLRF137-YVPEJ112M4,SLRF137-YVPEJ132M4,SLRF137-YVPEJ160M4,SLRF137-YVPEJ180M4,SLRF137-YVPEJ200M4,SLRF137-YVPEJ225M4,SLRF137-YVPEJ250M4,DSZRF137-Y112M4,DSZRF137-Y11KW,DSZRF137-Y132M4,DSZRF137-Y15KW,DSZRF137-Y160M4,DSZRF137-Y18.5KW,DSZRF137-Y180M4,DSZRF137-Y200M4,DSZRF137-Y225M4,DSZRF137-Y22KW,DSZRF137-Y250M4,DSZRF137-Y30KW,DSZRF137-Y37KW,DSZRF137-Y45KW,DSZRF137-Y4KW,DSZRF137-Y5.5KW,DSZRF137-Y55KW,DSZRF137-Y7.5KW,DSZRF137-YEJ112M4,DSZRF137-YEJ132M4,DSZRF137-YEJ160M4,DSZRF137-YEJ180M4,DSZRF137-YEJ200M4,DSZRF137-YEJ225M4,DSZRF137-YEJ250M4,DSZRF137-YS112M4,DSZRF137-YS132M4,DSZRF137-YS160M4,DSZRF137-YS180M4,DSZRF137-YS200M4,DSZRF137-YS225M4,DSZRF137-YS250M4,DSZRF137-YVP112M4,DSZRF137-YVP132M4,DSZRF137-YVP160M4,DSZRF137-YVP180M4,DSZRF137-YVP200M4,DSZRF137-YVP225M4,DSZRF137-YVP250M4,DSZRF137-YVPEJ112M4,DSZRF137-YVPEJ132M4,DSZRF137-YVPEJ160M4,DSZRF137-YVPEJ180M4,DSZRF137-YVPEJ200M4,DSZRF137-YVPEJ225M4,DSZRF137-YVPEJ250M4,BRF137-Y112M4,BRF137-Y11KW,BRF137-Y132M4,BRF137-Y15KW,BRF137-Y160M4,BRF137-Y18.5KW,BRF137-Y180M4,BRF137-Y200M4,BRF137-Y225M4,BRF137-Y22KW,BRF137-Y250M4,BRF137-Y30KW,BRF137-Y37KW,BRF137-Y45KW,BRF137-Y4KW,BRF137-Y5.5KW,BRF137-Y55KW,BRF137-Y7.5KW,BRF137-YEJ112M4,BRF137-YEJ132M4,BRF137-YEJ160M4,BRF137-YEJ180M4,BRF137-YEJ200M4,BRF137-YEJ225M4,BRF137-YEJ250M4,BRF137-YS112M4,BRF137-YS132M4,BRF137-YS160M4,BRF137-YS180M4,BRF137-YS200M4,BRF137-YS225M4,BRF137-YS250M4,BRF137-YVP112M4,BRF137-YVP132M4,BRF137-YVP160M4,BRF137-YVP180M4,BRF137-YVP200M4,BRF137-YVP225M4,BRF137-YVP250M4,BRF137-YVPEJ112M4,BRF137-YVPEJ132M4,BRF137-YVPEJ160M4,BRF137-YVPEJ180M4,BRF137-YVPEJ200M4,BRF137-YVPEJ225M4,BRF137-YVPEJ250M4,GRF137-Y112M4,GRF137-Y11KW,GRF137-Y132M4,GRF137-Y15KW,GRF137-Y160M4,GRF137-Y18.5KW,GRF137-Y180M4,GRF137-Y200M4,GRF137-Y225M4,GRF137-Y22KW,GRF137-Y250M4,GRF137-Y30KW,GRF137-Y37KW,GRF137-Y45KW,GRF137-Y4KW,GRF137-Y5.5KW,GRF137-Y55KW,GRF137-Y7.5KW,GRF137-YEJ112M4,GRF137-YEJ132M4,GRF137-YEJ160M4,GRF137-YEJ180M4,GRF137-YEJ200M4,GRF137-YEJ225M4,GRF137-YEJ250M4,GRF137-YS112M4,GRF137-YS132M4,GRF137-YS160M4,GRF137-YS180M4,GRF137-YS200M4,GRF137-YS225M4,GRF137-YS250M4,GRF137-YVP112M4,GRF137-YVP132M4,GRF137-YVP160M4,GRF137-YVP180M4,GRF137-YVP200M4,GRF137-YVP225M4,GRF137-YVP250M4,GRF137-YVPEJ112M4,GRF137-YVPEJ132M4,GRF137-YVPEJ160M4,GRF137-YVPEJ180M4,GRF137-YVPEJ200M4,GRF137-YVPEJ225M4,GRF137-YVPEJ250M4,RCF137-Y112M4,RCF137-Y11KW,RCF137-Y132M4,RCF137-Y15KW,RCF137-Y160M4,RCF137-Y18.5KW,RCF137-Y180M4,RCF137-Y200M4,RCF137-Y225M4,RCF137-Y22KW,RCF137-Y250M4,RCF137-Y30KW,RCF137-Y37KW,RCF137-Y45KW,RCF137-Y4KW,RCF137-Y5.5KW,RCF137-Y55KW,RCF137-Y7.5KW,RCF137-YEJ112M4,RCF137-YEJ132M4,RCF137-YEJ160M4,RCF137-YEJ180M4,RCF137-YEJ200M4,RCF137-YEJ225M4,RCF137-YEJ250M4,RCF137-YS112M4,RCF137-YS132M4,RCF137-YS160M4,RCF137-YS180M4,RCF137-YS200M4,RCF137-YS225M4,RCF137-YS250M4,RCF137-YVP112M4,RCF137-YVP132M4,RCF137-YVP160M4,RCF137-YVP180M4,RCF137-YVP200M4,RCF137-YVP225M4,RCF137-YVP250M4,RCF137-YVPEJ112M4,RCF137-YVPEJ132M4,RCF137-YVPEJ160M4,RCF137-YVPEJ180M4,RCF137-YVPEJ200M4,RCF137-YVPEJ225M4,RCF137-YVPEJ250M4,MTDF137-Y112M4,MTDF137-Y11KW,MTDF137-Y132M4,MTDF137-Y15KW,MTDF137-Y160M4,MTDF137-Y18.5KW,MTDF137-Y180M4,MTDF137-Y200M4,MTDF137-Y225M4,MTDF137-Y22KW,MTDF137-Y250M4,MTDF137-Y30KW,MTDF137-Y37KW,MTDF137-Y45KW,MTDF137-Y4KW,MTDF137-Y5.5KW,MTDF137-Y55KW,MTDF137-Y7.5KW,MTDF137-YEJ112M4,MTDF137-YEJ132M4,MTDF137-YEJ160M4,MTDF137-YEJ180M4,MTDF137-YEJ200M4,MTDF137-YEJ225M4,MTDF137-YEJ250M4,MTDF137-YS112M4,MTDF137-YS132M4,MTDF137-YS160M4,MTDF137-YS180M4,MTDF137-YS200M4,MTDF137-YS225M4,MTDF137-YS250M4,MTDF137-YVP112M4,MTDF137-YVP132M4,MTDF137-YVP160M4,MTDF137-YVP180M4,MTDF137-YVP200M4,MTDF137-YVP225M4,MTDF137-YVP250M4,MTDF137-YVPEJ112M4,MTDF137-YVPEJ132M4,MTDF137-YVPEJ160M4,MTDF137-YVPEJ180M4,MTDF137-YVPEJ200M4,MTDF137-YVPEJ225M4,MTDF137-YVPEJ250M4,WXRF137-WSS112M4,WXRF137-WSS11KW,WXRF137-WSS132M4,WXRF137-WSS15KW,WXRF137-WSS160M4,WXRF137-WSS18.5KW,WXRF137-WSS180M4,WXRF137-WSS200M4,WXRF137-WSS225M4,WXRF137-WSS22KW,WXRF137-WSS250M4,WXRF137-WSS30KW,WXRF137-WSS37KW,WXRF137-WSS45KW,WXRF137-WSS4KW,WXRF137-WSS5.5KW,WXRF137-WSS55KW,WXRF137-WSS7.5KW,WXRF137-WSSB112M4,WXRF137-WSSB132M4,WXRF137-WSSB160M4,WXRF137-WSSB180M4,WXRF137-WSSB200M4,WXRF137-WSSB225M4,WXRF137-WSSB250M4,WXRF137-WSSVP112M4,WXRF137-WSSVP132M4,WXRF137-WSSVP160M4,WXRF137-WSSVP180M4,WXRF137-WSSVP200M4,WXRF137-WSSVP225M4,WXRF137-WSSVP250M4,WXRF137-WSSVPB112M4,WXRF137-WSSVPB132M4,WXRF137-WSSVPB160M4,WXRF137-WSSVPB180M4,WXRF137-WSSVPB200M4,WXRF137-WSSVPB225M4,WXRF137-WSSVPB250M4。
