SA77減速機重量：SA77減速機重量49公斤，SA77減速機與電機重量分別如下

SA77減速機與0.55KW電機重量64公斤，SA77減速機與0.75KW電機重量65公斤，SA77減速機與1.1KW電機重量69公斤，SA77減速機與1.5KW電機重量72公斤，SA77減速機與2.2KW電機重量81公斤，SA77減速機與3KW電機重量84公斤，SA77減速機與4KW電機重量95公斤，SA77減速機與5.5KW電機重量109公斤，SA77減速機與7.5KW電機重量122公斤。

SA77減速機加油量：可加齒輪油伺服電機連接減速機

SA77減速機M3方式安裝加3.6-5L，SA77減速機M2方式安裝加3.9L，SA77減速機M1方式安裝加1.8L，SA77減速機M4方式安裝加5.8L，SA77減速機M5方式安裝加4.5L，SA77減速機M6方式安裝加4.5L。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

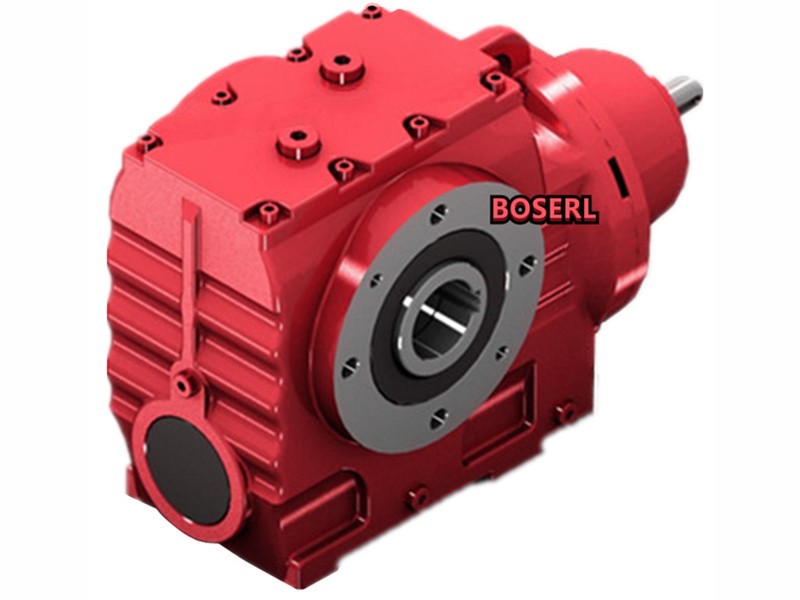

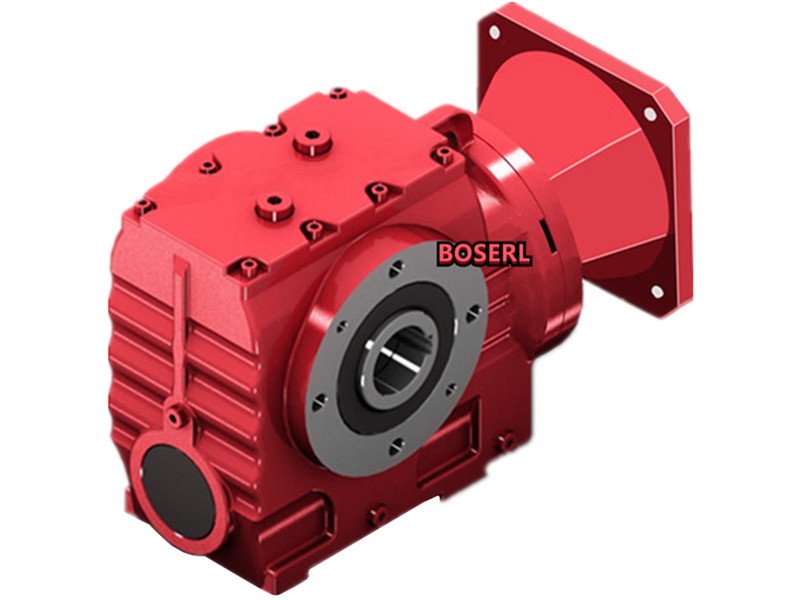

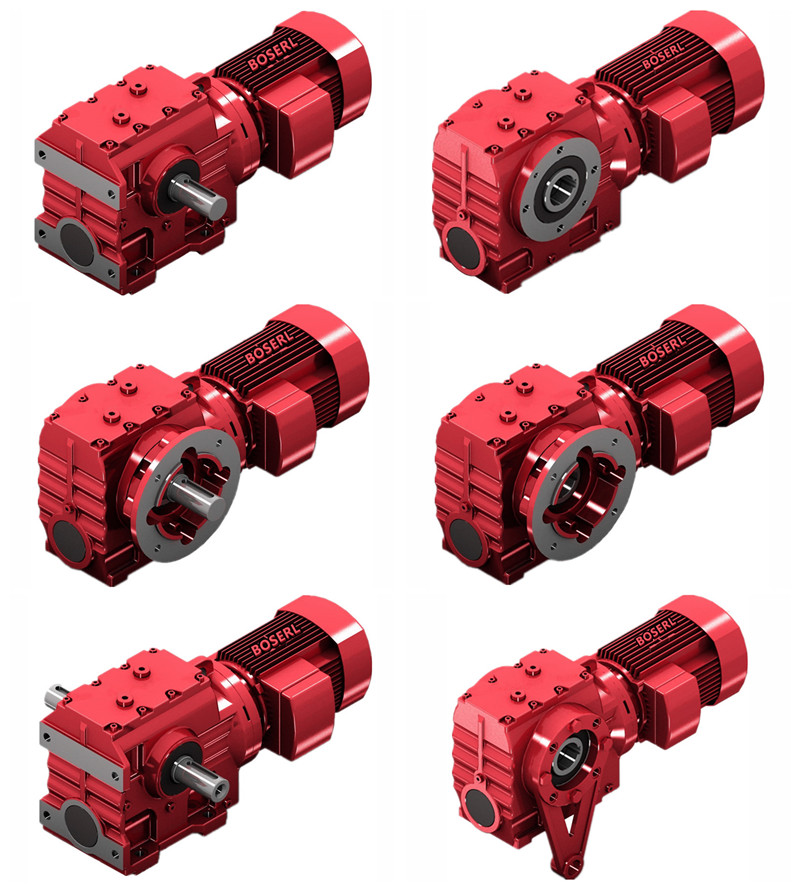

SA77減速機實物圖：圖一為SA77臥式中孔軸斜齒輪蝸輪蝸桿減速電機，圖二S77與自鎖功能底腳斜齒輪蝸輪蝸桿減速電機，圖三為SF77具有自鎖功能立式斜齒輪蝸輪蝸桿減速電機，圖四為SAF77立式通孔斜齒輪減速機。

SA77減速機型號表示方法：

SA77減速機型號結構SA77-B4KW-4P-減速比-方式安裝-接線盒位置。

SA77減速機性能參數表結構說明：K代表服務系數，T扭力臂，E編碼器，Frame size代表基座規格，HF手動釋放裝置與自鎖功能，TF電機熱保護裝置，SA77，S77，SF77，SAF77減速機機座號，HR手動釋放裝置，N代表徑向負荷，1/min代表輸出轉數。

SA77減速機電機接線盒方位說明：本頁附件選型目錄視圖為M1方式安裝，方向為:從電機尾部的風罩向前看。可提供R(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位。可提供S和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。自鎖減速機

SA77減速機參數：

SA77減速機減速比256.47比，225.26比，214比，189.09比，161.6比，148.15比，130比，123.3比，107.83比，97.14比，85.22比，75.2比，75.09比，71.33比，66.67比，63.03比，56.92比，53.87比，49.38比，43.33比，41.07比，35.94比，32.38比，28.41比，25.07比，22.89比，22.22比，20.99比，18.97比，18.42比，17.45比，15.28比，13.76比，12.07比，10.65比，9.44比，8.06比。

SA77減速機輸出轉數5.50轉，6.2轉，6.5轉，7.4轉，8.7轉，9.4轉，11轉，13轉，14轉，16轉，19轉，20轉，21轉，22轉，25轉，26轉，28轉，32轉，34轉，39轉，43轉，49轉，56轉，61轉，63轉，67轉，74轉，76轉，80轉，92轉，102轉，116轉，131轉，148轉，174轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為S系列減速機的輸入）

SA77減速機電機可與三相，直流，變頻，剎車，防爆，伺服，交流，單相電機SA77與0.55KW，SA77與0.75KW，SA77與1.1KW，SA77與1.5KW，SA77與2.2KW，SA77與3KW，SA77與4KW，SA77與5.5KW，SA77與7.5KW。

SA77減速機輸出扭矩680N.m，705N.m，710N.m，720N.m，725N.m，930N.m，980N.m，990N.m，1020N.m，1040N.m，1050N.m，1070N.m，1090N.m，1100N.m，1140N.m，1170N.m，1200N.m，1210N.m，1240N.m，1260N.m，1270N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

SA77減速機安裝尺寸：高301*寬210*長287

SA77減速機型號：SA77AQA80,SA77AQA100,SA77AQA115,SA77AQA140,SA77AQA160,SA77AQA190,SA77AQH80,SA77AQH100,SA77AQH115,SA77AQH140,SA77AQH160,SA77AQH190,JRTSA77-Y0.25KW,JRTSA77-Y0.37KW,JRTSA77-Y0.55KW,JRTSA77-Y0.75KW,JRTSA77-Y1.1KW,JRTSA77-Y1.5KW,JRTSA77-Y100M4,JRTSA77-Y112M4,JRTSA77-Y132M4,JRTSA77-Y2.2KW,JRTSA77-Y3KW,JRTSA77-Y4KW,JRTSA77-Y5.5KW,JRTSA77-Y7.5KW,JRTSA77-Y71M4,JRTSA77-Y80M4,JRTSA77-Y90M4,JRTSA77-YEJ100M4,JRTSA77-YEJ112M4,JRTSA77-YEJ132M4,JRTSA77-YEJ71M4,JRTSA77-YEJ80M4,JRTSA77-YEJ90M4,JRTSA77-YS100M4,JRTSA77-YS112M4,JRTSA77-YS132M4,JRTSA77-YS71M4,JRTSA77-YS80M4,JRTSA77-YS90M4,JRTSA77-YVP100M4,JRTSA77-YVP112M4,JRTSA77-YVP132M4,JRTSA77-YVP71M4,JRTSA77-YVP80M4,JRTSA77-YVP90M4,JRTSA77-YVPEJ100M4,JRTSA77-YVPEJ112M4,JRTSA77-YVPEJ132M4,JRTSA77-YVPEJ71M4,JRTSA77-YVPEJ80M4,JRTSA77-YVPEJ90M4,EWSA77-Y0.25KW,EWSA77-Y0.37KW,EWSA77-Y0.55KW,EWSA77-Y0.75KW,EWSA77-Y1.1KW,EWSA77-Y1.5KW,EWSA77-Y100M4,EWSA77-Y112M4,EWSA77-Y132M4,EWSA77-Y2.2KW,EWSA77-Y3KW,EWSA77-Y4KW,EWSA77-Y5.5KW,EWSA77-Y7.5KW,EWSA77-Y71M4,EWSA77-Y80M4,EWSA77-Y90M4,EWSA77-YEJ100M4,EWSA77-YEJ112M4,EWSA77-YEJ132M4,EWSA77-YEJ71M4,EWSA77-YEJ80M4,EWSA77-YEJ90M4,EWSA77-YS100M4,EWSA77-YS112M4,EWSA77-YS132M4,EWSA77-YS71M4,EWSA77-YS80M4,EWSA77-YS90M4,EWSA77-YVP100M4,EWSA77-YVP112M4,EWSA77-YVP132M4,EWSA77-YVP71M4,EWSA77-YVP80M4,EWSA77-YVP90M4,EWSA77-YVPEJ100M4,EWSA77-YVPEJ112M4,EWSA77-YVPEJ132M4,EWSA77-YVPEJ71M4,EWSA77-YVPEJ80M4,EWSA77-YVPEJ90M4,SLSA77-Y0.25KW,SLSA77-Y0.37KW,SLSA77-Y0.55KW,SLSA77-Y0.75KW,SLSA77-Y1.1KW,SLSA77-Y1.5KW,SLSA77-Y100M4,SLSA77-Y112M4,SLSA77-Y132M4,SLSA77-Y2.2KW,SLSA77-Y3KW,SLSA77-Y4KW,SLSA77-Y5.5KW,SLSA77-Y7.5KW,SLSA77-Y71M4,SLSA77-Y80M4,SLSA77-Y90M4,SLSA77-YEJ100M4,SLSA77-YEJ112M4,SLSA77-YEJ132M4,SLSA77-YEJ71M4,SLSA77-YEJ80M4,SLSA77-YEJ90M4,SLSA77-YS100M4,SLSA77-YS112M4,SLSA77-YS132M4,SLSA77-YS71M4,SLSA77-YS80M4,SLSA77-YS90M4,SLSA77-YVP100M4,SLSA77-YVP112M4,SLSA77-YVP132M4,SLSA77-YVP71M4,SLSA77-YVP80M4,SLSA77-YVP90M4,SLSA77-YVPEJ100M4,SLSA77-YVPEJ112M4,SLSA77-YVPEJ132M4,SLSA77-YVPEJ71M4,SLSA77-YVPEJ80M4,SLSA77-YVPEJ90M4,DSZSA77-Y0.25KW,DSZSA77-Y0.37KW,DSZSA77-Y0.55KW,DSZSA77-Y0.75KW,DSZSA77-Y1.1KW,DSZSA77-Y1.5KW,DSZSA77-Y100M4,DSZSA77-Y112M4,DSZSA77-Y132M4,DSZSA77-Y2.2KW,DSZSA77-Y3KW,DSZSA77-Y4KW,DSZSA77-Y5.5KW,DSZSA77-Y7.5KW,DSZSA77-Y71M4,DSZSA77-Y80M4,DSZSA77-Y90M4,DSZSA77-YEJ100M4,DSZSA77-YEJ112M4,DSZSA77-YEJ132M4,DSZSA77-YEJ71M4,DSZSA77-YEJ80M4,DSZSA77-YEJ90M4,DSZSA77-YS100M4,DSZSA77-YS112M4,DSZSA77-YS132M4,DSZSA77-YS71M4,DSZSA77-YS80M4,DSZSA77-YS90M4,DSZSA77-YVP100M4,DSZSA77-YVP112M4,DSZSA77-YVP132M4,DSZSA77-YVP71M4,DSZSA77-YVP80M4,DSZSA77-YVP90M4,DSZSA77-YVPEJ100M4,DSZSA77-YVPEJ112M4,DSZSA77-YVPEJ132M4,DSZSA77-YVPEJ71M4,DSZSA77-YVPEJ80M4,DSZSA77-YVPEJ90M4,BSA77-Y0.25KW,BSA77-Y0.37KW,BSA77-Y0.55KW,BSA77-Y0.75KW,BSA77-Y1.1KW,BSA77-Y1.5KW,BSA77-Y100M4,BSA77-Y112M4,BSA77-Y132M4,BSA77-Y2.2KW,BSA77-Y3KW,BSA77-Y4KW,BSA77-Y5.5KW,BSA77-Y7.5KW,BSA77-Y71M4,BSA77-Y80M4,BSA77-Y90M4,BSA77-YEJ100M4,BSA77-YEJ112M4,BSA77-YEJ132M4,BSA77-YEJ71M4,BSA77-YEJ80M4,BSA77-YEJ90M4,BSA77-YS100M4,BSA77-YS112M4,BSA77-YS132M4,BSA77-YS71M4,BSA77-YS80M4,BSA77-YS90M4,BSA77-YVP100M4,BSA77-YVP112M4,BSA77-YVP132M4,BSA77-YVP71M4,BSA77-YVP80M4,BSA77-YVP90M4,BSA77-YVPEJ100M4,BSA77-YVPEJ112M4,BSA77-YVPEJ132M4,BSA77-YVPEJ71M4,BSA77-YVPEJ80M4,BSA77-YVPEJ90M4,GSA77-Y0.25KW,GSA77-Y0.37KW,GSA77-Y0.55KW,GSA77-Y0.75KW,GSA77-Y1.1KW,GSA77-Y1.5KW,GSA77-Y100M4,GSA77-Y112M4,GSA77-Y132M4,GSA77-Y2.2KW,GSA77-Y3KW,GSA77-Y4KW,GSA77-Y5.5KW,GSA77-Y7.5KW,GSA77-Y71M4,GSA77-Y80M4,GSA77-Y90M4,GSA77-YEJ100M4,GSA77-YEJ112M4,GSA77-YEJ132M4,GSA77-YEJ71M4,GSA77-YEJ80M4,GSA77-YEJ90M4,GSA77-YS100M4,GSA77-YS112M4,GSA77-YS132M4,GSA77-YS71M4,GSA77-YS80M4,GSA77-YS90M4,GSA77-YVP100M4,GSA77-YVP112M4,GSA77-YVP132M4,GSA77-YVP71M4,GSA77-YVP80M4,GSA77-YVP90M4,GSA77-YVPEJ100M4,GSA77-YVPEJ112M4,GSA77-YVPEJ132M4,GSA77-YVPEJ71M4,GSA77-YVPEJ80M4,GSA77-YVPEJ90M4,SCA77-Y0.25KW,SCA77-Y0.37KW,SCA77-Y0.55KW,SCA77-Y0.75KW,SCA77-Y1.1KW,SCA77-Y1.5KW,SCA77-Y100M4,SCA77-Y112M4,SCA77-Y132M4,SCA77-Y2.2KW,SCA77-Y3KW,SCA77-Y4KW,SCA77-Y5.5KW,SCA77-Y7.5KW,SCA77-Y71M4,SCA77-Y80M4,SCA77-Y90M4,SCA77-YEJ100M4,SCA77-YEJ112M4,SCA77-YEJ132M4,SCA77-YEJ71M4,SCA77-YEJ80M4,SCA77-YEJ90M4,SCA77-YS100M4,SCA77-YS112M4,SCA77-YS132M4,SCA77-YS71M4,SCA77-YS80M4,SCA77-YS90M4,SCA77-YVP100M4,SCA77-YVP112M4,SCA77-YVP132M4,SCA77-YVP71M4,SCA77-YVP80M4,SCA77-YVP90M4,SCA77-YVPEJ100M4,SCA77-YVPEJ112M4,SCA77-YVPEJ132M4,SCA77-YVPEJ71M4,SCA77-YVPEJ80M4,SCA77-YVPEJ90M4,MTNA77-Y0.25KW,MTNA77-Y0.37KW,MTNA77-Y0.55KW,MTNA77-Y0.75KW,MTNA77-Y1.1KW,MTNA77-Y1.5KW,MTNA77-Y100M4,MTNA77-Y112M4,MTNA77-Y132M4,MTNA77-Y2.2KW,MTNA77-Y3KW,MTNA77-Y4KW,MTNA77-Y5.5KW,MTNA77-Y7.5KW,MTNA77-Y71M4,MTNA77-Y80M4,MTNA77-Y90M4,MTNA77-YEJ100M4,MTNA77-YEJ112M4,MTNA77-YEJ132M4,MTNA77-YEJ71M4,MTNA77-YEJ80M4,MTNA77-YEJ90M4,MTNA77-YS100M4,MTNA77-YS112M4,MTNA77-YS132M4,MTNA77-YS71M4,MTNA77-YS80M4,MTNA77-YS90M4,MTNA77-YVP100M4,MTNA77-YVP112M4,MTNA77-YVP132M4,MTNA77-YVP71M4,MTNA77-YVP80M4,MTNA77-YVP90M4,MTNA77-YVPEJ100M4,MTNA77-YVPEJ112M4,MTNA77-YVPEJ132M4,MTNA77-YVPEJ71M4,MTNA77-YVPEJ80M4,MTNA77-YVPEJ90M4,WXSA77-WSS0.25KW,WXSA77-WSS0.37KW,WXSA77-WSS0.55KW,WXSA77-WSS0.75KW,WXSA77-WSS1.1KW,WXSA77-WSS1.5KW,WXSA77-WSS100M4,WXSA77-WSS112M4,WXSA77-WSS132M4,WXSA77-WSS2.2KW,WXSA77-WSS3KW,WXSA77-WSS4KW,WXSA77-WSS5.5KW,WXSA77-WSS7.5KW,WXSA77-WSS71M4,WXSA77-WSS80M4,WXSA77-WSS90M4,WXSA77-WSSB100M4,WXSA77-WSSB112M4,WXSA77-WSSB132M4,WXSA77-WSSB71M4,WXSA77-WSSB80M4,WXSA77-WSSB90M4,WXSA77-WSSVP100M4,WXSA77-WSSVP112M4,WXSA77-WSSVP132M4,WXSA77-WSSVP71M4,WXSA77-WSSVP80M4,WXSA77-WSSVP90M4,WXSA77-WSSVPB100M4,WXSA77-WSSVPB112M4,WXSA77-WSSVPB132M4,WXSA77-WSSVPB71M4,WXSA77-WSSVPB80M4,WXSA77-WSSVPB90M4。
